Q195 Spiral Welded Carbon Steel Pipe

Ask Lasest Price
Brand Name :	SYL
Model Number :	Q195/Q235/Q345 etc
Certification :	ISO
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	5000 Ton per month
Delivery Time :	7-15 Work days

Add to Cart

Product Details
Company Profile

Q195 Spiral Welded Carbon Steel Pipe

Spiral pipe, also known as spiral steel pipe or spiral welded pipe, is the low carbon structural steel or low alloy structural steel strip according to a certain Angle of the spiral line (called forming Angle) rolled into the tube blank, and then welded together, it can use a narrower strip to produce large diameter steel pipe.
Spiral pipe is mainly used for oil and natural gas transmission pipelines, and its specifications are expressed by outer diameter * wall thickness. Spiral pipes are single-side welded and double-side welded. The welded pipes shall ensure that the hydrostatic test, tensile strength and cold bending performance of the weld meet the requirements.

Product Specification

Product Name	Carbon welded spiral steel pipe for oil pipeline construction
Material	Q195/Q235/Q345 etc
Application	It is mainly used in tap water engineering, petrochemical industry, chemical industry, electric power industry, agricultural irrigation, urban construction, and is one of the 20 key products developed in China. For liquid transportation: water supply, drainage, sewage treatment projects, mud transport, ocean water transport. For gas transportation: gas, steam, liquefied petroleum gas. For structural use: for piling pipes, Bridges; Pipe for wharf, road, building structure, Marine piling pipe, etc.
Dimension	Customized
Standard	SY/T5037-2018 GB/T9711.1-1997 GB/T9711.2 B API-5L SY/T5040-92 etc
Feature	Straight seam welded pipe production process is simple, high production efficiency, low cost, rapid development. The strength of the spiral welded pipe is generally higher than that of the straight seam welded pipe, and the welded pipe with larger diameter can be produced with a narrower blank, and the welded pipe with different diameter can also be produced with a blank of the same width. But compared with the straight seam pipe of the same length, the weld length increases by 30~100%, and the production speed is lower. Therefore, small diameter welded pipe mostly use straight seam welding, large diameter welded pipe mostly use spiral welding
Chemical Composition	S≤0.050% P≤0.045% C≤0.30%
Payment term	30% TT advance+70% balance payoff before shipment

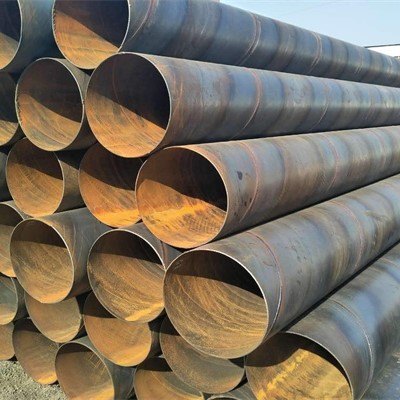

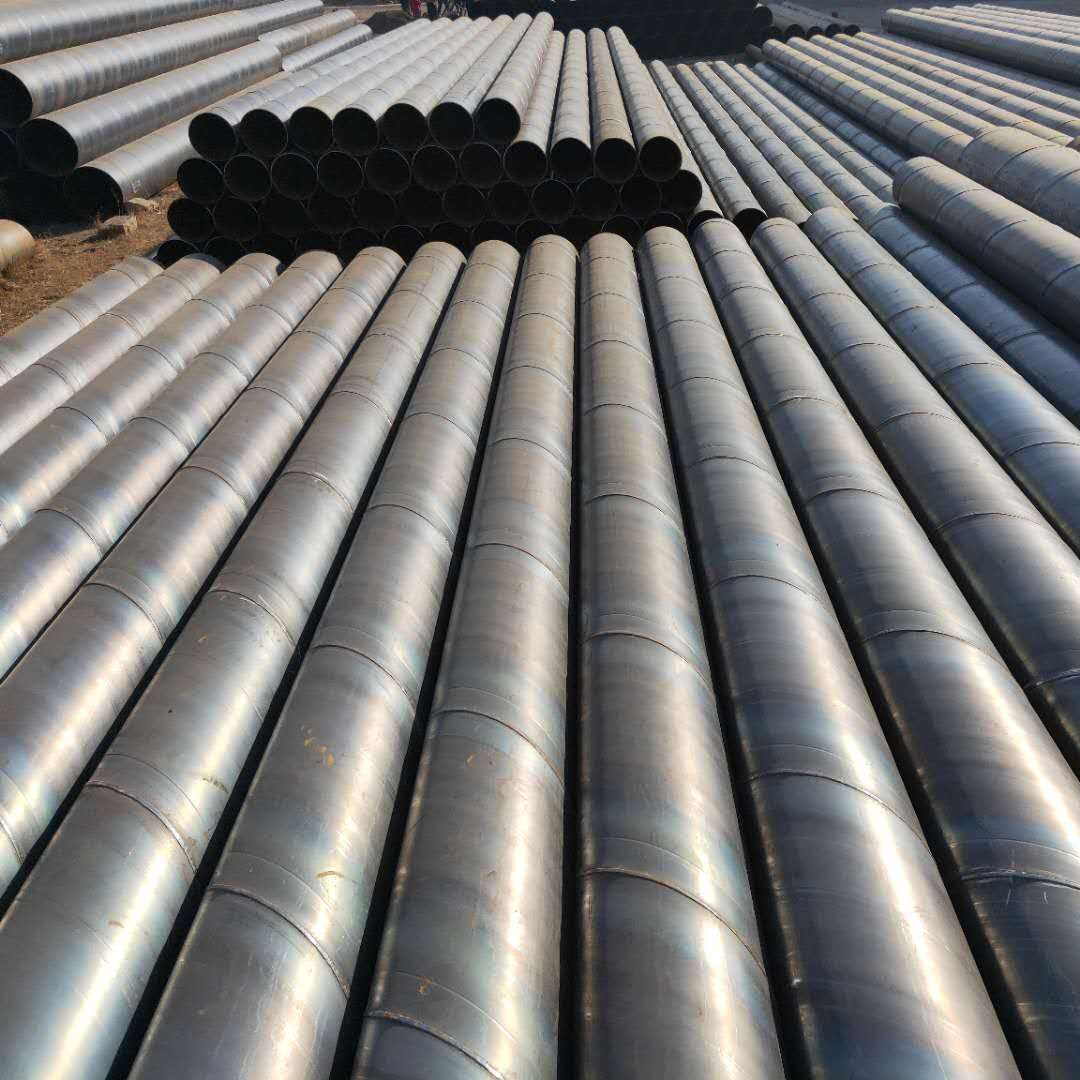

Product Pictures

FAQ

Q:what kind of work does your company do?

A:Our companv is a professional manufacturer
We mainly produces stainless steel plate/pipe/coil/round bars,as well as aluminum plate/pipe/coil/bai

Q:what are the advantages of your company?

A
(1): Prime quality and reasonable price
(2):Wide excellent experiences with after-sale service
(3)Every process will be checked by responsible QC which insures every product's quality

(4):Professional packing teams which keep every packing safely

(5)Trial order can be done in one week.
(6):Samples can be provided as your requirements.

Q:what is your terms of payment?
A:Payment<=1000USD.100%in advance.Payment>=1000USD.30%T/T in advance .balance based on BL copy or LC at sight.
if you have another question,please contact us as below

Q:What about your price?
A:Our price is very competitive because we are a factory.
Pls feel free to contact us if you are interested in our products

Q:How long is your delivery time?
A:Different products have different delivery time.The products will be delivered as soon as possible on the basis of the quality
assurance.Usually the delivery time is within5 days after we received your deposit
